MRL Elevator (Machine Roomless Elevator)

The Smart Solution of Modern Urban Life…

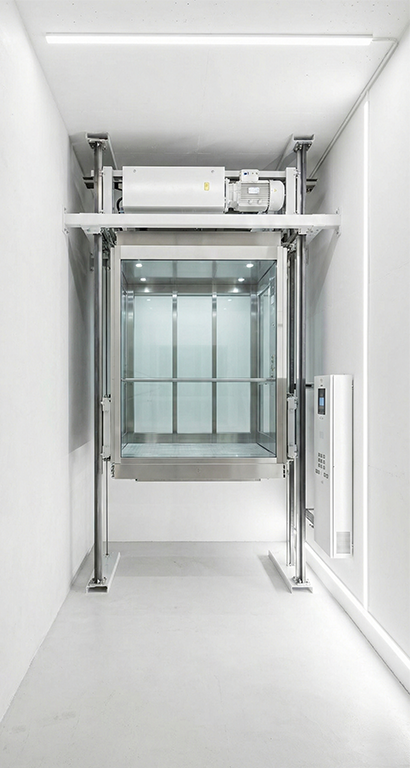

Machine roomless elevators are modern vertical transportation systems that operate without requiring a separate machine room for the motor and control equipment. Unlike traditional elevator solutions, the motor and related components are integrated directly into the elevator shaft or at the top section of the shaft. This modern approach offers significant advantages, especially in terms of space saving and energy efficiency.

History and Development

Machine roomless elevator systems began to spread widely in the late 20th century and have become one of the indispensable elements of modern buildings in the 21st century. Advances in technology have increased the need for more compact, quiet, and efficient elevator solutions. In line with this, systems have been developed where motor and control units are integrated into the elevator shaft, eliminating the need for a traditional machine room.

Machine roomless elevators are innovative vertical transportation solutions that do not require a separate machine room to house motor and control equipment. Unlike traditional systems, the motor and auxiliary components are placed directly in the elevator shaft or its upper section. This structure stands out in terms of both architectural flexibility and energy efficiency.

Working Principle

The basic components and working logic of machine roomless elevators are as follows:

• Motor: The main element that provides the movement of the elevator. Gearless permanent magnet synchronous motors are mostly preferred due to their compact structure and high energy efficiency.
• Pulley and Rope System:The cabin and counterweight move with the help of steel ropes and pulleys. When the motor rotates the pulley, the ropes move and the cabin travels up or down.
• Control System:The electronic infrastructure that manages all movements of the elevator. This microprocessor-based system optimizes performance while increasing energy efficiency.
• Cabin:The passenger cabin is equipped with various features to ensure safe and comfortable use.

Advantages

Main advantages of machine roomless elevators:

• Space Saving: No need for an additional machine room as the motor and equipment are integrated into the shaft. This provides a major advantage especially in projects with limited space.
• Energy Efficiency: Gearless motors consume less energy compared to traditional systems. Regenerative braking also allows energy recovery during descent.
• Low Noise and Vibration:Quiet operation and minimal vibration increase passenger comfort, especially in residential and office buildings.
• Easy Installation and Maintenance: The compact design simplifies installation and maintenance processes while reducing costs.
• Aesthetic and Design Flexibility: Provides more architectural freedom and adds aesthetic value to modern projects.

Disadvantages

Some limitations of machine roomless elevators include:

• Initial Installation Cost: Advanced motor and control technologies may result in higher initial costs, although long-term savings balance this.
• Speed and Load Limitations: May not always be ideal for extremely high-speed or heavy-load requirements.

Areas of Use

Machine roomless elevators are widely used in different structures:

• Residential Buildings: Preferred for apartments due to quiet operation and space-saving design.
• Commercial Buildings:Used in offices, malls, and hotels for energy efficiency and aesthetic compatibility.
• Public Buildings:Provides safe and uninterrupted transportation in hospitals, schools, and public facilities.
• Modern Architectural Projects:Adds aesthetic value with its compact and flexible design.

Safety Measures and Standards

Safety is ensured in compliance with national and international standards:

• Emergency Brakes: Prevent cabin falling in case of rope failure.
• Speed Governors:Prevent the elevator from exceeding speed limits.
• Door Locks:Prevent doors from opening unless the cabin is at floor level.
• Emergency Lighting and Communication:Ensure safety and communication during power outages.
• Regular Maintenance and Inspection:Periodic checks ensure safe and reliable operation.

Energy Efficiency and Eco-Friendly Technologies

Machine roomless elevators are supported by modern eco-friendly technologies:

• Regenerative Braking:Energy generated during descent is returned to the building’s electrical system, reducing overall consumption.
